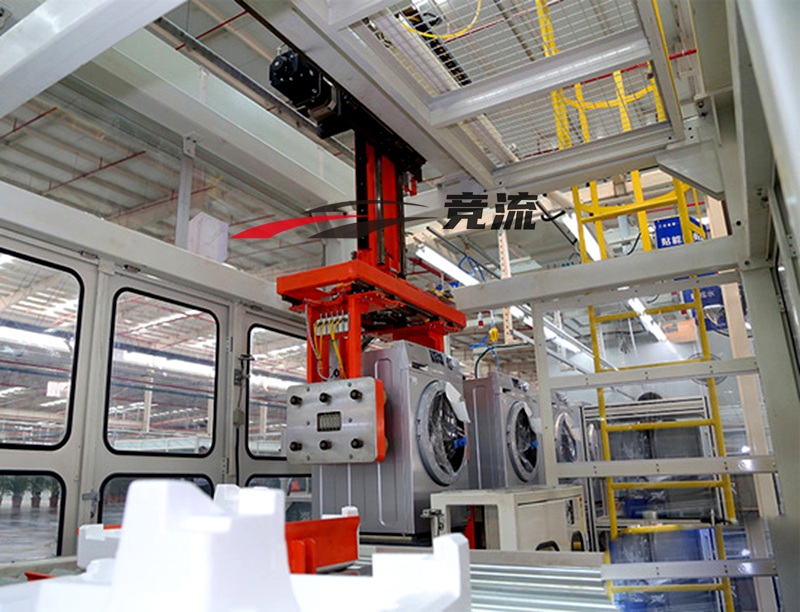

Washing‑machine Assembly Line Process:Front‑loading washing machine assembly line: The picture shows an automated station for front‑loading washing machine final assembly. The complete‑machine cabinet is delivered into position by roller conveyors. A gantry truss manipulator performs complete‑machine handling and cabinet positioning & assembly operations. The truss mechanism is equipped with servo‑driven lifting and translation modules, and its end effector is fitted with large‑size vacuum suction tooling to grip the front‑loading washing‑machine cabinet and complete the mating assembly of inner‑drum and outer‑drum assemblies. Transparent safety guard fences are installed around the station for human‑machine isolation protection. Servo drive units and cable‑carrier pipelines are arranged on the upper steel structure of the production line. The whole washing‑machine production line is equipped with RFID identification and MES data acquisition to recognize model information and support mixed‑model assembly of multiple front‑loading washing‑machine variants. After cabinet mating assembly, products flow to subsequent processes including motor assembly, counterweight block installation, door‑lock component fitting, water supply‑drainage pipeline connection and wiring harness plug‑in. Upon assembly completion, units move to the complete‑machine power‑on test station, where electrical safety, door‑lock function, water inflow & drainage, motor operation, vibration and noise tests are carried out. Non‑conforming products are diverted via transfer devices to rework stations for fault diagnosis and repair. Passing units proceed to visual inspection, labelling and packaging & off‑line procedures.

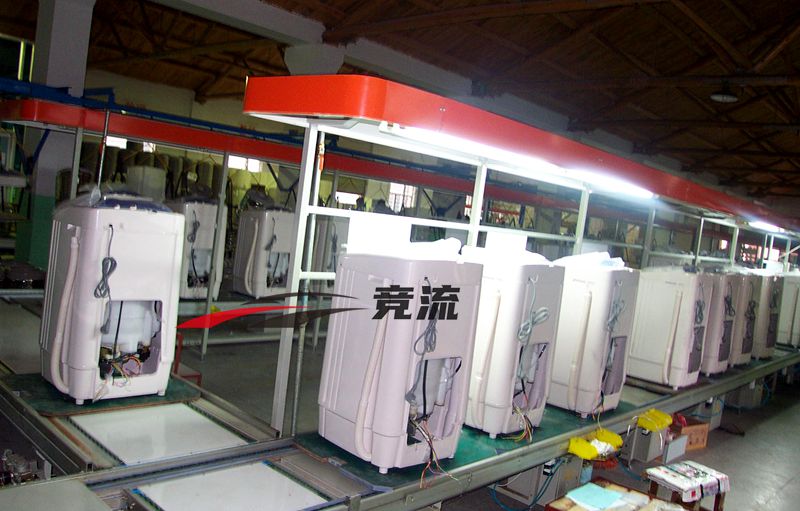

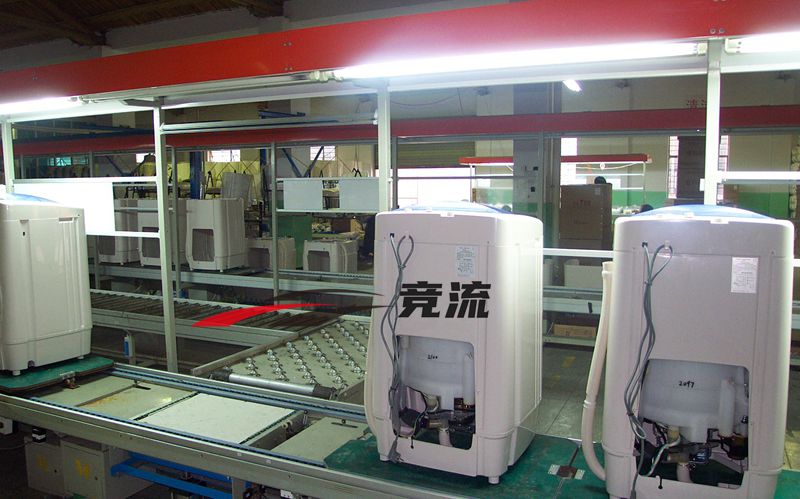

Top‑loading washing machine assembly line: The picture shows the final‑assembly line for top‑loading washing machines. Cabinets are placed upside‑down on the tooling‑pallet roller conveyor with their bottom sides exposed, facilitating operators to mount bottom‑side components such as transmission assemblies, water supply‑drainage hoses and electrical cables. The production line adopts a circulating tooling‑pallet conveying mode, with rollers and ball transfer tables enabling inter‑station transfer. Green tooling base pads are deployed at each station to protect the paint finish of washing‑machine outer casings. The washing‑machine production line sequentially completes reduction clutch assembly, motor fixing, water supply‑drainage pipeline connection and wiring harness connection station by station. After bottom‑component assembly, cabinets are transferred to the turnover station for re‑orientation, and then proceed to fit inner tub, pulsator, control panel and top‑cover assemblies. Afterwards, units enter the complete‑machine performance test section to simulate water inflow, drainage and washing‑program running, and undergo insulation‑earthing safety inspection. Defective products are taken off‑line for rework. Qualified units go through final visual inspection, nameplate labelling and accessory kitting, before carton sealing, packaging, off‑loading and warehousing.

Distinct differences exist in process layout between front‑loading and top‑loading washing‑machine assembly lines. The front‑loading variant relies heavily on automated mating assembly by truss manipulators for automatic docking of large‑size assemblies. The top‑loading variant extensively uses tooling‑pallet conveyance, prioritizes bottom‑component assembly and depends more on manual‑aided assembly at many stations. Both production lines are connected to the MES system to realize full‑process production‑data traceability for individual units and enable mixed‑flow production of multiple specifications.

1. Different types of washing machines are matched with corresponding conveying lines

a. The inner cylinder, outer shell and other parts of the drum washing machine are large and heavy (the weight of a single inner cylinder can reach 30 – 50kg). The conveying line of the assembly line needs to focus on the load-bearing capacity. The chain-plate conveyor belt will become the mainstream choice. It can stably carry heavy parts to avoid shaking or deviation during transportation and ensure accurate docking of the inner cylinder and the outer shell.
b. The core components of the pulsator washing machine, such as pulsator and washing bucket, are relatively light. The belt conveyor belt can meet the conveying needs. Its surface is flat and the friction force is moderate, which can reduce wear on the surface of the components. At the same time, the conveying speed is easier to adjust and adapt to the pulsator washing machine’s faster assembly pace.

2. Advantages of automated washing machine production lines

a. Highly automated: The entire production process, from parts transportation and assembly to testing and packaging, is mostly completed by automated equipment, reducing manual intervention and improving the continuity and stability of production.
b. Flexible production: It can quickly adapt to the production needs of different models and specifications of washing machines. By adjusting equipment parameters and procedures, product switching production can be realized in a short time.
c. Ensure product quality: The error caused by manual operations is reduced, and the product pass rate can reach more than 99.5%, which is much higher than the artificial line of about 95%, reducing after-sales costs caused by quality problems.
